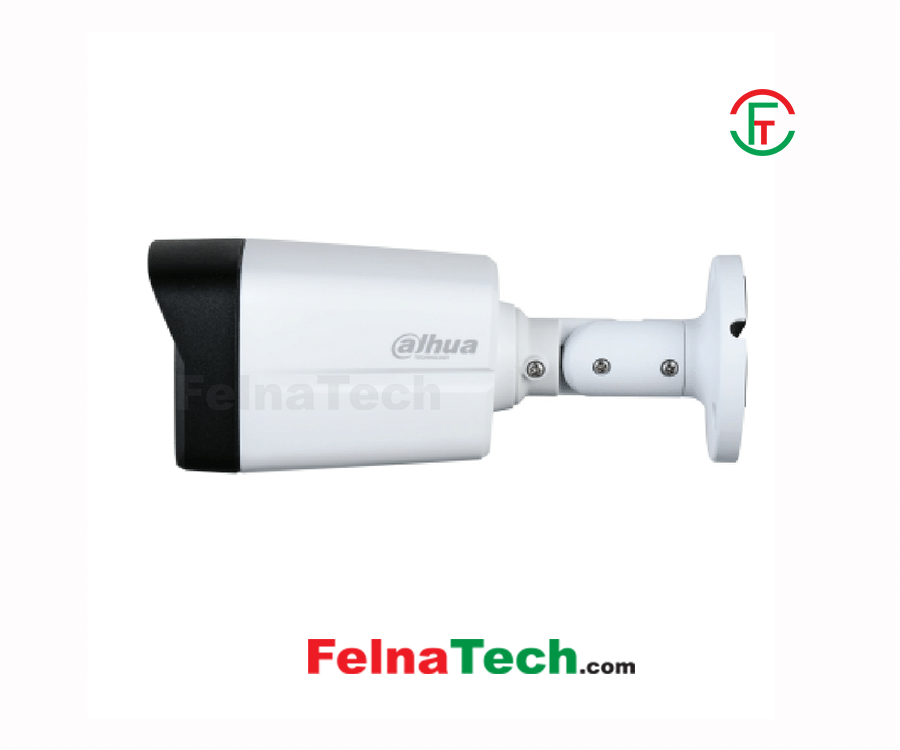

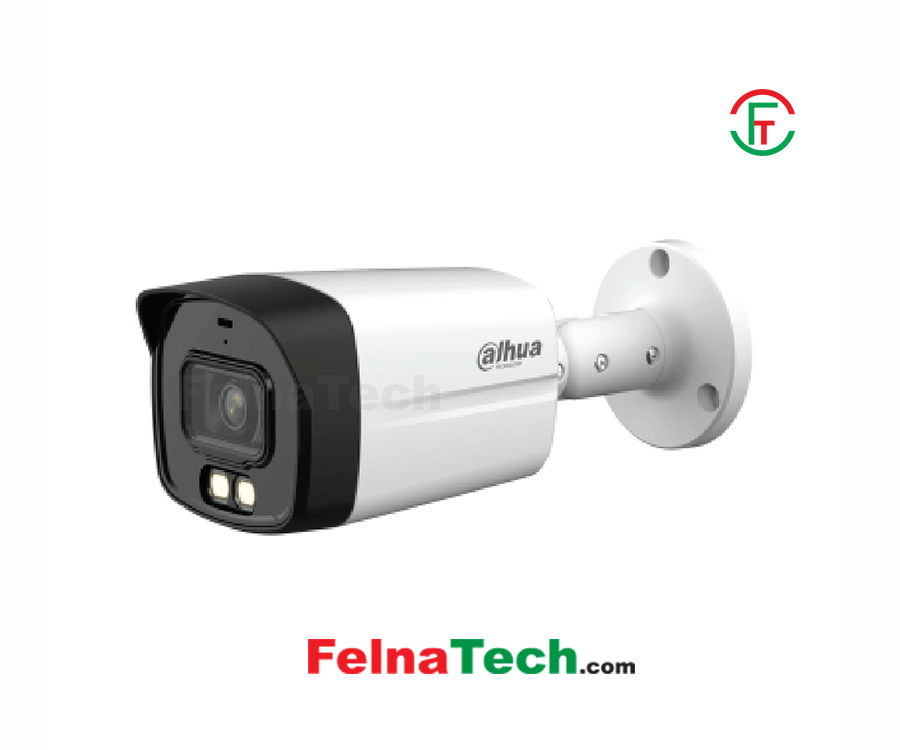

Dahua HAC-HFW1500TLMP-IL-A 5MP Smart Dual Light HDCVI Bullet CC Camera
Model: DH-HAC-HFW1500TLMP-IL-A
Brand: Dahua
Code: 16131155
| General | |
|---|---|
| Casing | Metal front cover + plastic rear barrel + metal bracket |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.16″ × 3″) |
| Weight | 0.3 kg (0.66 lb) |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 4.5 W (12 VDC, WLED on) |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Effective Pixels | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Minimum Illumination | 0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | More than 65dB |
| IR Distance | IR: 40 m (131.23 ft) Warm Light: 40 m (131.23 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 (Warm light);2 (IR light) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Max Aperture | F1.6 |
| Angle of View | 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 109° |
| Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) |
| Video | |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC Mode | BLC; HLC; DWDR |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR |
| Interface | |
| Audio Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Video Interface | One channel built-in mic |
| Special Features | |
| Features | Smart Dual Light. 40 m illumination distance. Super Adapt. Built-in MIC. IP67 |
| Warranty | |
| Warranty | 1 Year |
Brand: Security / Dahua
Title: Dahua HAC-HFW1500TLMP-IL-A 5MP Smart Dual Light HDCVI Bullet CC Camera
Model: DH-HAC-HFW1500TLMP-IL-A
Code: 16131155
Category: Security / CCTV HD Camera / Dahua
Product Type: CCTV Camera
Price: 3850
Warranty: 1
Availability: Available/In Stock
Description:
General
Casing
Metal front cover + plastic rear barrel + metal bracket
Dimensions
198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.16″ × 3″)
Weight
0.3 kg (0.66 lb)
Pan/Tilt/Rotation
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Operating Conditions
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Conditions
–40 °C to +60 °C (–40 °F to +140 °F)
Power Supply
12 VDC ± 30%
Power Consumption
Max 4.5 W (12 VDC, WLED on)
Camera
Image Sensor
5 MP CMOS
Effective Pixels
2880 (H) × 1620 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination
0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
More than 65dB
IR Distance
IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)
IR On/Off Control
Auto / Manual
IR LEDs
2 (Warm light);2 (IR light)
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
3.6 mm
Max Aperture
F1.6
Angle of View
2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Close Focus Distance
3.6 mm: 1.3 m (4.27 ft)
Video
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night
Auto(ICR)/Color/B/W
BLC Mode
BLC; HLC; DWDR
Gain Control
Auto/Manual
Noise Reduction
2D NR
Interface
Audio Interface
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Video Interface
One channel built-in mic
Special Features
Features
Smart Dual Light.
40 m illumination distance.
Super Adapt.
Built-in MIC.
IP67
Warranty
Warranty
1 Year
