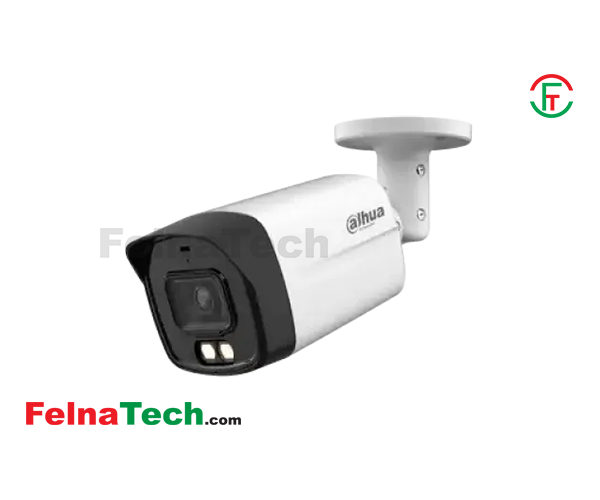

Dahua HAC-HFW1200TLMP-IL-A Dual Light HDCVI Fixed-focal

Brand: Dahua

Title: Dahua HAC-HFW1200TLMP-IL-A Dual Light HDCVI Fixed-focal

Model: HAC-HFW1200TLMP-IL-A

Code: 16131106

Category: Security

Price: 2800

Sub-Sub Category: Dahua

Offer Status: 0

Description:

General

Casing

Plastic

Dimensions

198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3")

Weight

0.29 kg (0.64 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.1W (12 VDC, IR on)

Camera

Image Sensor

2 MP CMOS

Effective Pixels

1920 (H) × 1080 (V) Max. 30 fps@1080p.

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Minimum Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

IR Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

IR On/Off Control

Auto / Manual

IR LEDs

2 (Warm light);2 (IR light)

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm;3.6 mm

Max Aperture

F2.0

Angle of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

Video

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC; HLC; DWDR

Gain Control

Auto/Manual

Noise Reduction

3D NR

Interface

Audio Interface

1-channel built-in MIC

Video Interface

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Special Features

Features

Smart Dual Light.
Super Adapt.
Built-in MIC.
IP67, 12 VDC.

Warranty

Warranty

01 Year warranty
