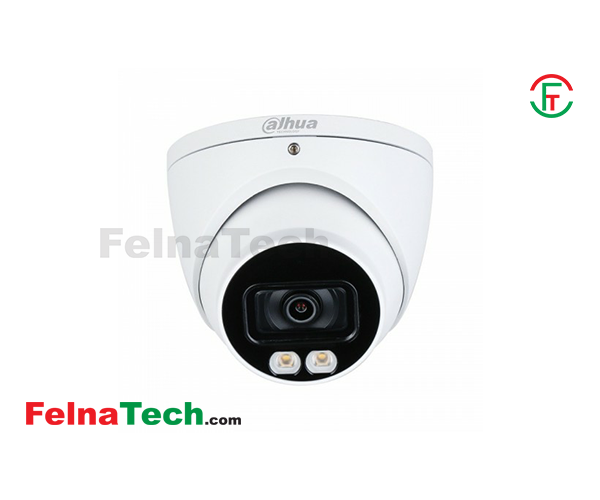

Dahua HAC-HDW1239TP-A-LED 2MP HDCVI Full Color with Audio
Model: DAHUA-HAC-HDW1239TP-A-LED
Brand: Dahua
Code: 16131110
| General | |
|---|---|
| Casing | Metal throughout the whole casing |
| Dimensions | φ106.0mm×93.6mm (φ4.17"×3.69") |
| Weight | 0.46 Kg |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 5W (12V DC, white light on) |
| Camera | |
| Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS |
| Effective Pixels | 1920 (H)×1080 (V), 2MP |
| Electronic Shutter Speed | PAL:1/25s–1/100000s NTSC:1/30s–1/100000s |
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on |
| IR Distance | Distance up to 40m (131.23ft) |
| IR On/Off Control | Auto; Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed-focal Fixed iris |
| Mount Type | M12 |
| Focal Length | 2.8mm/3.6mm |
| Max Aperture | F1.6 |
| Angle of View | 126.2°×106.0°×56.5° |
| Close Focus Distance | 0.6m (1.97ft) |
| Video | |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480) |
| Frame Rate | CVI: PAL: 1080@25fps, 720@25fps, 720@50fps; NTSC: 1080@30fps, 720@30fps, 720@60fps AHD: PAL: 1080@25fps,720@25fps; NTSC: 1080@30fps,720@30fps TVI: PAL: 1080@25fps,720@25fps,720@50fps; NTSC: 1080@30fps,720@30fps,720@60fps CVBS: PAL: 960×576H; NTSC: 960×480H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| BLC Mode | BLC/HLC/WDR |
| Gain Control | Auto; Manual |
| Noise Reduction | 2D NR |
| Interface | |
| Audio Interface | Built-in mic(-A |
| Special Features | |
| Features | WDR: DWDR Smart Light: Yes White Balance: Auto; Manual Electronic Defog: Yes Digital Zoom: 16X Mirror: Off/On Privacy Masking: Off/On (4 area, rectangle) |
| Warranty | |
| Warranty | 1 Year |
Brand: Dahua
Title: Dahua HAC-HDW1239TP-A-LED 2MP HDCVI Full Color with Audio
Model: DAHUA-HAC-HDW1239TP-A-LED
Code: 16131110
Category: Security
Price: 3300
Sub-Sub Category: Dahua
Offer Status: 0
Description:
General
Casing
Metal throughout the whole casing
Dimensions
φ106.0mm×93.6mm (φ4.17"×3.69")
Weight
0.46 Kg
Pan/Tilt/Rotation
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Operating Conditions
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Conditions
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Power Supply
12V ±30% DC
Power Consumption
Max 5W (12V DC, white light on)
Camera
Image Sensor
1/2.8 inch 2.16 Mega Pixels CMOS
Effective Pixels
1920 (H)×1080 (V), 2MP
Electronic Shutter Speed
PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s
Minimum Illumination
0.005Lux/F1.6, 30IRE, 0Lux white Light on
IR Distance
Distance up to 40m (131.23ft)
IR On/Off Control
Auto; Manual
IR LEDs
2
Lens
Lens Type
Fixed-focal
Fixed iris
Mount Type
M12
Focal Length
2.8mm/3.6mm
Max Aperture
F1.6
Angle of View
126.2°×106.0°×56.5°
Close Focus Distance
0.6m (1.97ft)
Video
Resolution
1080P (1920×1080); 720P (1280×720); 960H (704×
576/704×480)
Frame Rate
CVI:
PAL: 1080@25fps, 720@25fps, 720@50fps;
NTSC: 1080@30fps, 720@30fps, 720@60fps
AHD:
PAL: 1080@25fps,720@25fps;
NTSC: 1080@30fps,720@30fps
TVI:
PAL: 1080@25fps,720@25fps,720@50fps;
NTSC: 1080@30fps,720@30fps,720@60fps
CVBS:
PAL: 960×576H;
NTSC: 960×480H
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
BLC Mode
BLC/HLC/WDR
Gain Control
Auto; Manual
Noise Reduction
2D NR
Interface
Audio Interface
Built-in mic(-A
Special Features
Features
WDR: DWDR
Smart Light: Yes
White Balance: Auto; Manual
Electronic Defog: Yes
Digital Zoom: 16X
Mirror: Off/On
Privacy Masking: Off/On (4 area, rectangle)
Warranty
Warranty
1 Year
