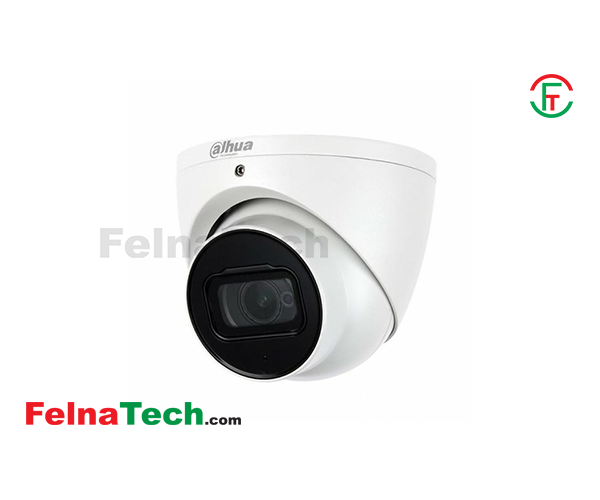

Dahua HAC-HDW1200TLP-A 2MP HDCVI IR Eyeball with Audio
Model: HAC-HDW1200TLP-A
Brand: Dahua
Code: 16131126
| General | |
|---|---|
| Casing | Inner core: metal+plastic; cover: plastic |
| Dimensions | Φ97.0mm×85.8mm (Φ3.82″×3.38″) |
| Weight | 0.22 Kg |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F); <95% (non-condensation) |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F); <95% (non-condensation) |
| Power Supply | 12V±30% DC |
| Power Consumption | Max 3.6W (12V DC, IR on) |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 1920 (H)×1080 (V), 2MP |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| IR Distance | 30m (98.42ft) |
| IR On/Off Control | Auto; manual |
| IR LEDs | 1 |
| Lens | |
| Lens Type | Lens Type: Fixed-focal Iris Type: Fixed iris |
| Mount Type | M12 |
| Focal Length | 2.8mm; 3.6mm |
| Max Aperture | F1.85/F2.0 |
| Angle of View | 2.8mm: 118°×103°×59° (diagonal×horizontal×vertical) 3.6mm: 103.8°×87.5°×47° (diagonal×horizontal×vertical) |
| Close Focus Distance | 0.5m (1.64ft)/0.9m (2.95ft) |
| Video | |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) |
| Frame Rate | CVI: PAL: 1080P@25fp; 720P@25fps; 720@50fps NTSC: 1080P@30fp; 720P@30fps; 720@60fps AHD: PAL: 1080P@25fp; 720P@25fps NTSC: 1080P@30fp; 720P@30fps TVI: PAL: 1080P@25fp; 720P@25fps; 720@50fps NTSC: 1080P@30fp; 720P@30fps; 720@60fpsCVBS: PAL: 960H NTSC: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | Auto switch by ICR |
| BLC Mode | BLC/HLC/DWDR |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Interface | |
| Audio Interface | Built-in mic (-A) |
| Video Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Warranty | |
| Warranty | 1 Year |
Brand: Dahua
Title: Dahua HAC-HDW1200TLP-A 2MP HDCVI IR Eyeball with Audio
Model: HAC-HDW1200TLP-A
Code: 16131126
Category: Security
Price: 2200
Sub-Sub Category: Dahua
Offer Status: 0
Description:
General
Casing
Inner core: metal+plastic; cover: plastic
Dimensions
Φ97.0mm×85.8mm (Φ3.82″×3.38″)
Weight
0.22 Kg
Pan/Tilt/Rotation
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Operating Conditions
-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
Storage Conditions
-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
Power Supply
12V±30% DC
Power Consumption
Max 3.6W (12V DC, IR on)
Camera
Image Sensor
1/2.7 inch CMOS
Effective Pixels
1920 (H)×1080 (V), 2MP
Electronic Shutter Speed
PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
Minimum Illumination
0.02Lux/F1.85, 30IRE, 0Lux IR on
IR Distance
30m (98.42ft)
IR On/Off Control
Auto; manual
IR LEDs
1
Lens
Lens Type
Lens Type: Fixed-focal
Iris Type: Fixed iris
Mount Type
M12
Focal Length
2.8mm; 3.6mm
Max Aperture
F1.85/F2.0
Angle of View
2.8mm: 118°×103°×59° (diagonal×horizontal×vertical)
3.6mm: 103.8°×87.5°×47° (diagonal×horizontal×vertical)
Close Focus Distance
0.5m (1.64ft)/0.9m (2.95ft)
Video
Resolution
1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)
Frame Rate
CVI:
PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps
AHD: PAL: 1080P@25fp; 720P@25fps
NTSC: 1080P@30fp; 720P@30fps
TVI: PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fpsCVBS: PAL: 960H
NTSC: 960H
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night
Auto switch by ICR
BLC Mode
BLC/HLC/DWDR
Gain Control
Auto; manual
Noise Reduction
2D NR
Interface
Audio Interface
Built-in mic (-A)
Video Interface
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Warranty
Warranty
1 Year
