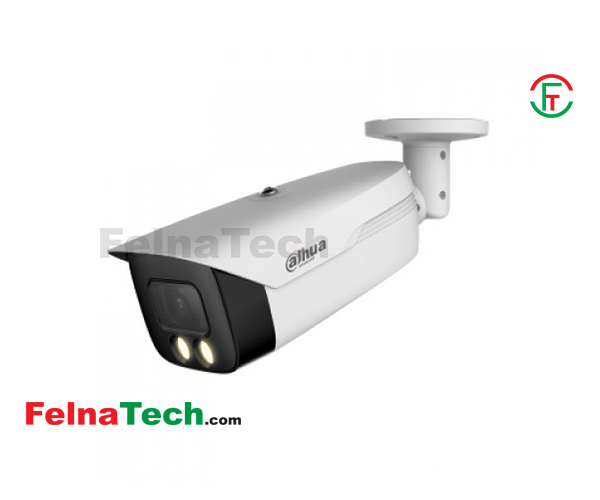

Dahua DH-HAC-HFW1509MHP-A-LED 5MP Color HDCVI Bullet Camera
Model: DH-HAC-HFW1509MHP-A-LED-HDCVI
Brand: Dahua
Code: 16131104
| General | |
|---|---|
| Casing | Metal front cover + plastic main body + plastic bracket |
| Dimensions | 304 mm × 108.4 mm × 90.8 mm (11.97" × 4.27" × 3.57") |
| Weight | Net Weight: 0.82 kg (1.8 lb) Gross Weight: 1.25kg (2.8 lb) |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation) |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation) |
| Power Supply | 12 V ±30% DC |
| Power Consumption | Max 6.4 W (12 V DC, warm light on) |
| Camera | |
| Image Sensor | 5MP CMOS |
| Effective Pixels | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s |
| Minimum Illumination | 0.001 Lux/F1.0, 0 Lux warm light on |
| S/N Ratio | > 65 dB |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 3.6 mm; 6 mm |
| Max Aperture | F1.0 |
| Angle of View | 3.6 mm: H: 88; V: 46°; D: 104° 6mm: H: 59; V: 32°; D: 67° |
| Close Focus Distance | 3.6 mm: 2.3 m (7.5 ft) 6mm:4.5m (14.8 ft) |
| Video | |
| Resolution | 2880 (H) × 1620 (V) |
| Frame Rate | TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Video Output | CVI/TVI/AHD/CVBS by one BNC port |
| BLC Mode | BLC/HLC/WDR/HLC-Pro |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Interface | |
| Audio Interface | One channel built-in mic |
| Video Interface | CVI/TVI/AHD/CVBS by one BNC port |
| Warranty | |
| Warranty | 01-year warranty |
Brand: Dahua
Title: Dahua DH-HAC-HFW1509MHP-A-LED 5MP Color HDCVI Bullet Camera
Model: DH-HAC-HFW1509MHP-A-LED-HDCVI
Code: 16131104
Category: Security / CCTV HD Camera / Dahua
Product Type: CCTV Camera
Price: 5850
Warranty: 1
Availability: Available/In Stock
Description:
General
Casing
Metal front cover + plastic main body + plastic bracket
Dimensions
304 mm × 108.4 mm × 90.8 mm (11.97" × 4.27" × 3.57")
Weight
Net Weight: 0.82 kg (1.8 lb)
Gross Weight: 1.25kg (2.8 lb)
Pan/Tilt/Rotation
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Operating Conditions
–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Storage Conditions
–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
Power Supply
12 V ±30% DC
Power Consumption
Max 6.4 W (12 V DC, warm light on)
Camera
Image Sensor
5MP CMOS
Effective Pixels
5MP
Scanning System
Progressive
Electronic Shutter Speed
PAL:1/3 s–1/100,000 s
NTSC:1/4 s–1/100,000 s
Minimum Illumination
0.001 Lux/F1.0, 0 Lux warm light on
S/N Ratio
> 65 dB
Lens
Lens Type
Fixed lens
Mount Type
M12
Focal Length
3.6 mm; 6 mm
Max Aperture
F1.0
Angle of View
3.6 mm: H: 88; V: 46°; D: 104°
6mm: H: 59; V: 32°; D: 67°
Close Focus Distance
3.6 mm: 2.3 m (7.5 ft)
6mm:4.5m (14.8 ft)
Video
Resolution
2880 (H) × 1620 (V)
Frame Rate
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Video Output
CVI/TVI/AHD/CVBS by one BNC port
BLC Mode
BLC/HLC/WDR/HLC-Pro
Gain Control
Auto; manual
Noise Reduction
3D NR
Interface
Audio Interface
One channel built-in mic
Video Interface
CVI/TVI/AHD/CVBS by one BNC port
Warranty
Warranty
01-year warranty
