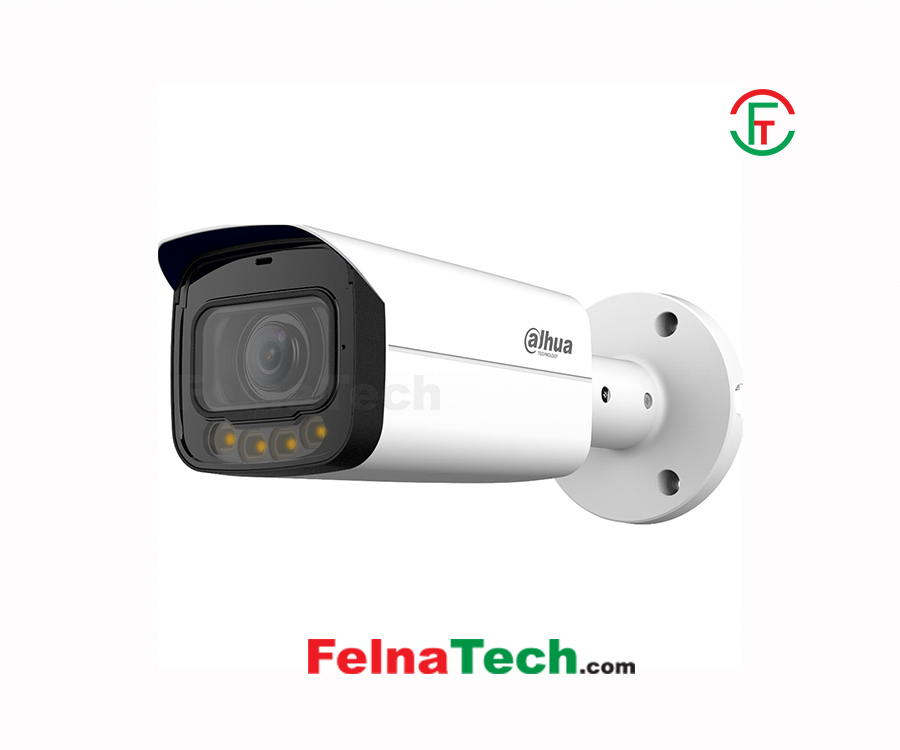

Dahua DH-HAC-HFW1209TLMP-A-LED Full-color HDCVI Bullet CC Camera

Brand: Dahua

Title: Dahua DH-HAC-HFW1209TLMP-A-LED Full-color HDCVI Bullet CC Camera

Model: DH-HAC-HFW1209TLMP-A-LED

Code: 16131152

Category: Security / CCTV HD Camera / Dahua

Product Type: CCTV Camera

Price: 3000

Warranty: 1

Availability: Available/In Stock

Description:

Basic Info

Brand

Dahua

Series

Full Color

Model

DH-HAC-HFW1209TLMP-A-LED

Part No

DH-HAC-HFW1209TLMP-A-LED-0360B

Design

Product Type

CC Camera

Form Factor

Bullet

Camera Type

Fixed

Usage

Indoor & Outdoor

Casing

Metal, Plastic

Body Color

White

Mount

Vertical Pole / Wall / Ceiling

Working Distance

40 Meter

Camera

Image Sensor

1/2.8 inch CMOS

Mega Pixel

2.0MP

Camera Resolution

1920(H)×1080(V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s

NTSC: 1/30 s–1/100000 s

Signal System

4 Signals over 1 Coaxial Cable

Day & Night

Full Color

Night Vision

Yes

Night Vision Mode

Color

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6mm

Max. Aperture

F1.6

Field of View

H: 106.0°; V: 56.5°; D: 103.6°

Illuminator

Illuminator

Auto; Manual

IR Range

Up to 40 Meter

Minimum Illumination

0.01 Lux/F1.6, 0 Lux Backlight on

IR On/Off Control

 Auto / Manual

DORI

DORI Distance

3.6 mm, D: 55.2 m, 22.1 m, R: 11 m, 5.5 m


Image Settings

24/7 color imaging

Wide Dynamic Range (WDR)

Digital WDR

SNR

 >65 dB

White Balance

Auto; Manual

Privacy Mask

Off/On (8 area, rectangle)

Video

Video Output

BNC (HDCVI/TVI/AHD/CVBS switchable)

Frame Rate

CVI: 25 fps @ 1080p; 25 fps @ 720p

AHD: 25 fps @ 1080p

TVI: 25 fps @ 1080p

CVBS : 960H

Audio

Built-in Mic

Yes

Environment Noise Filtering

2D NR

Power

Power Supply

12 V±30% DC

Power Consumption

≤4.9 W (12V DC, Backlight on)

Security

Ingress Protection

IP67

Certification

CE

CE (EN55032, EN55024, EN50130-4,EN60950-1)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Additional Info

Others

A True-to-life Image with Impressive Clarity of HDCVI technology

Made in

China

Physical Description

Dimensions

198.5 mm x 80.2 mm x 76.2 mm

Weight

300 gm

Warranty

Warranty

1 Year

Warranty Details

1 Year Brand Warranty

Warranty Policy

No Warranty for Physical & Burn Damage
