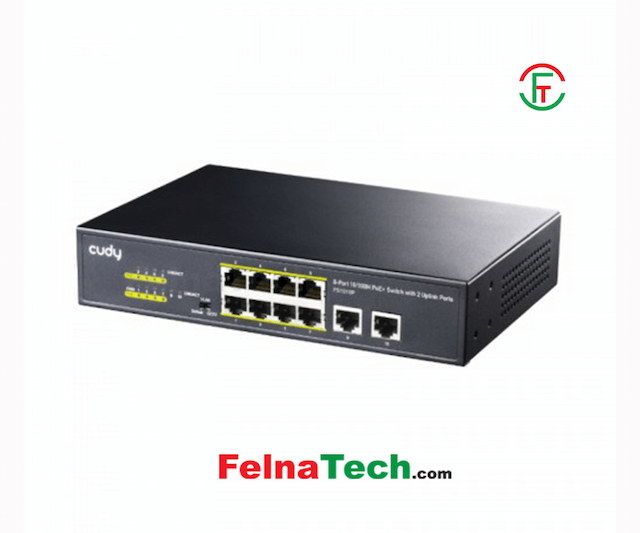

Cudy FS1010PG 8 Port PoE+ Switch with 2 Uplink Ports

Brand: Switch / Cudy

Title: Cudy FS1010PG 8 Port PoE+ Switch with 2 Uplink Ports

Model: CUDY-FS1010PG

Code: 216433604

Category: Networking / Switch (PoE) / Cudy

Product Type: PoE switch

Price: 4050

Warranty: 0

Availability: Available/In Stock

Description:

Main Feature

Port

10*10/100Mbps The RJ45 port through consultationa

Network Standard

Support IEEE802.3at and IEEE802.3af Standard
Support IEEE802.3x full duplex and half duplex flow control

Access Method

10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)

Advanced Functions

VLAN and CCTV Function

Transmission Method

Store-and-Forward

Data Transmission Rate

Jumbo frame: 1528Bytes
Packet buffer: 2M bit
Packet forwarding rate: 1.48Mpps
Bandwidth: 2M bit

Environment

Operating Temperature 0°C ~ 40 °C
Storage Temperature -40 °C ~ 70 °C
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Surge Protection ±4KV
MTBF >50000 hour
Electrostatic standard Contact 4KV, air 6KV

Hardware Features

Power Supply

100~240V AC， 50/60Hz
PoE Total: 120W

Dimensions (L x W x H)

220*150*44mm

Weight

>1kg

Manufacture Warranty

Warranty

1 Year
