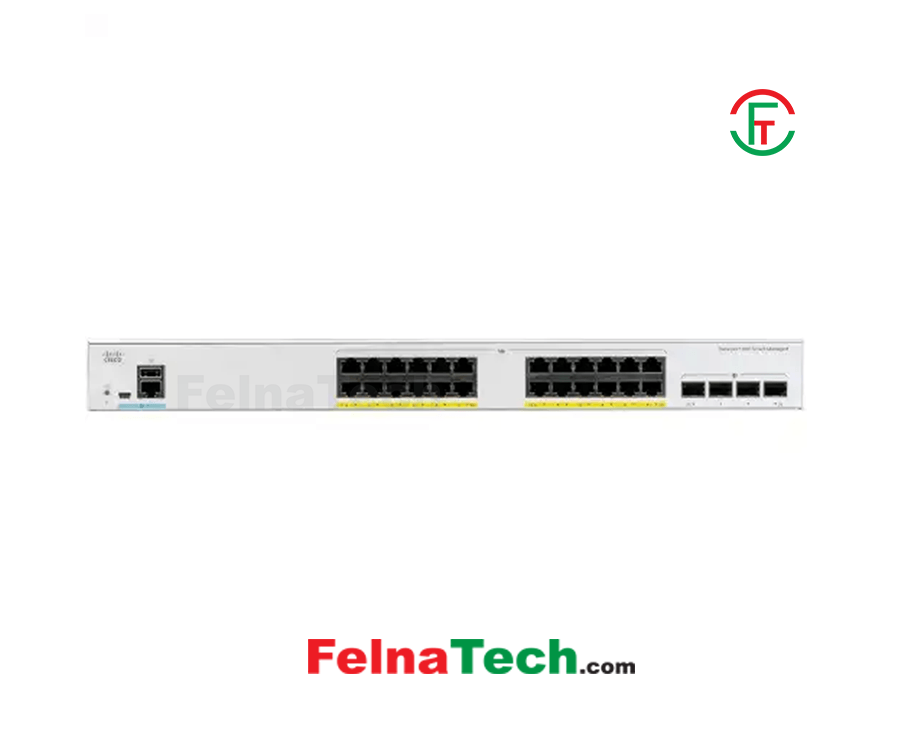

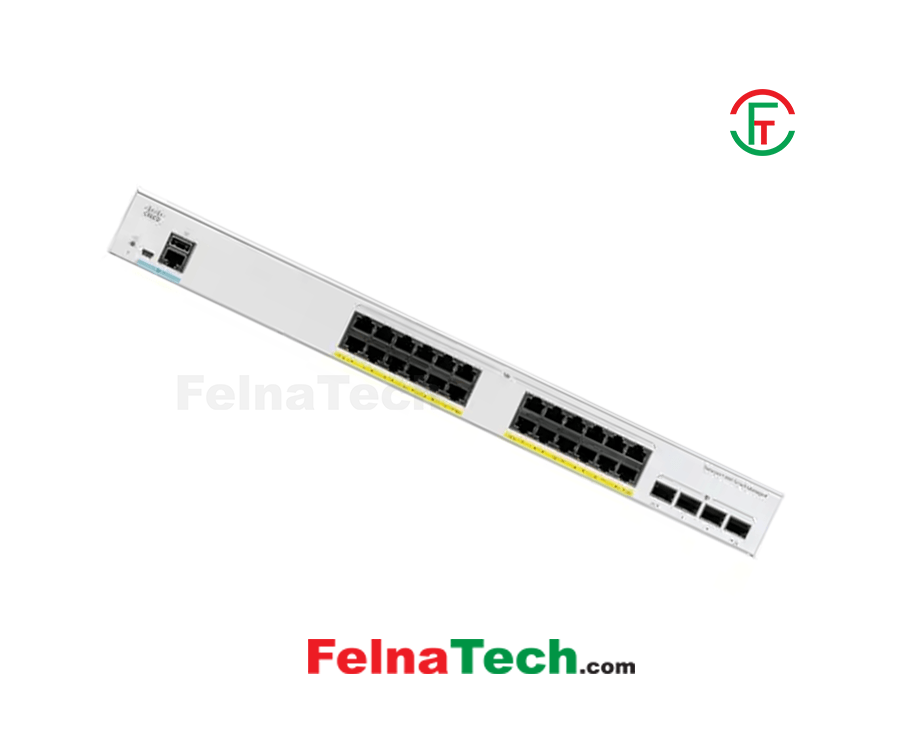

Cisco Catalyst C1000-24T-4G-L 24-Port Network Switch

Brand: Switch / Cisco

Title: Cisco Catalyst C1000-24T-4G-L 24-Port Network Switch

Model: CATALYST-1000-SERIES-C1000-24T-4G-L

Code: 216333204

Category: Networking / Switch / Cisco

Product Type: Switch

Price: 50500

Warranty: 1

Availability: Available/In Stock

Description:

Main Feature

Type

Network Switch

Port

24-port

Advanced Functions

542 IPv4 unicast direct routes
256 IPv4 unicast indirect routes
414 IPv6 unicast direct routes
128 IPv6 unicast indirect routes
16 IPv4 static routes
16 IPv6 static routes
1024 IPv4 multicast routes and IGMP groups
1024 IPv6 multicast groups
600 IPv4/MAC security ACEs
600 IPv6 security ACEs
256 maximum active VLANs
4094 VLAN IDs available
64 maximum STP instances
4 maximum SPAN sessions
9198 bytes MTU-L3 packet
10240 bytes jumbo ethernet frame
Dying Gasp support
2026793 hours MTBF (data)
698220 hours MTBF (PoE)

Data Transmission Rate

Forwarding Bandwidth 28Gbps
Switching Bandwidth 56Gbps
Data forwarding rate 41.67 Mpps with 64-byte L3 packets

MAC Address Table

16K Unicast MAC addresses

Environment

The operating temperature seal level is -5 to 50°C
-5 to 45 degrees Celsius at 5000 feet
-5 to 40 degrees Celsius at 10000 feet
The operating altitude is 10000 feet
The operating relative humidity is 5 to 90 percent at 40°C
Storage temperature is -25 to 70°C or -13 to 158 °F
Storage altitude is 15000 feet
Storage relative humidity is 5 to 95 percent at 65°C

Hardware Features

Interface

24x 10/100/1000 Ethernet ports
4x 1G SFP uplinks
1 x USB mini-B port
1 x USB-A port for storage and Bluetooth console

LED

Per-port status
link integrity
Disabled & Activity
System status

Power Supply

Power Unit: 110V=50.8W 220V=52.1W
PoE Power: 382W

Dimensions (L x W x H)

17.5 x 9.45 x 1.73 inch

Manufacture Warranty

Warranty

1 Year
