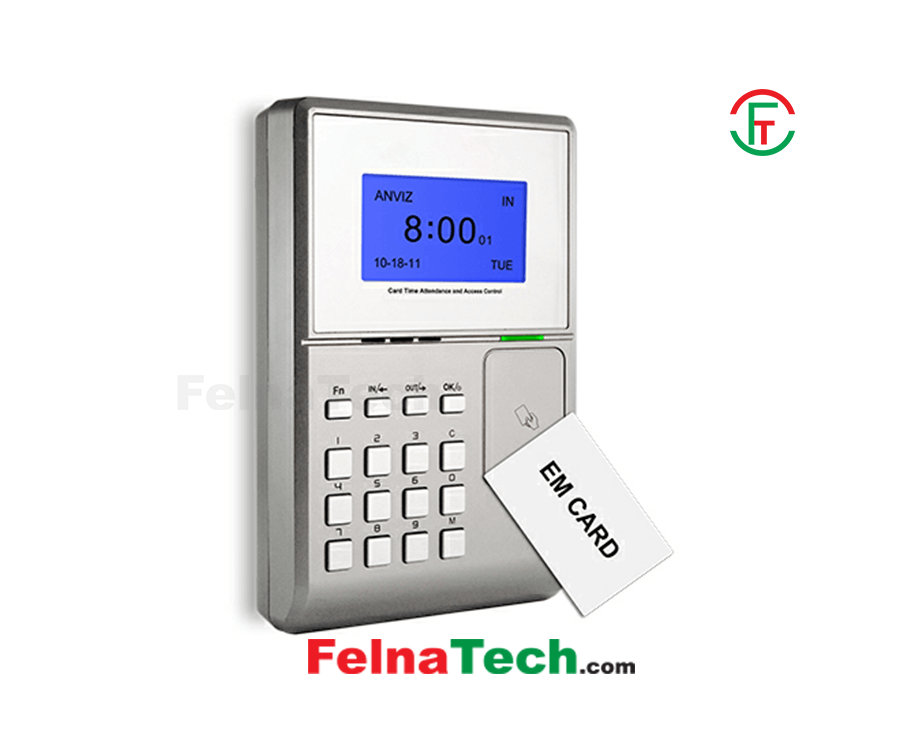

Anviz OC500 RFID Time Attendance and Access Control
Model: OC-500
Brand: ANVIZ
Code: 167738903
Time Attendance and Access Control Management System
Employee Management: Unify Employee management.
Device Management: Quick Add, Easy Setting.
Shift Management: Manual and intelligent shift schedule.
Export Management: Flexible and Practical Report output.
Anviz OC500 Feature
- Texas Instruments 32-bit high-speed CPU of low power consumption,
- Clear voice prompts along with all operations,
- USB Plug & Play connection. No driver needed,
- TCP/IP connectivity,
- USB pen drive data download,
- Real-time data transfer and WEB online tracking,
- Optional13.56MHZ Mifare or HID card reader,
- Various employee authentication methods,
- Easy combination of password and card,
- 16 different customizable time and attendance status,
- 6-digit work code to calculate different job cost,
- Public and private short message display,
- Support 12V power supply for electric/magnetic locks,
- Relay output for easy integration with bell ring or electric/magnetic lock system,
- Advanced access control with 16 groups and 32 time zones available
- Standard Wiegand output for seamless integration with access controller,
- Wiegand input to connect external fingerprint, card or keypad reader,
- Support multiple display and software language.
Anviz OC500 Parameter
| Capacity | |
|---|---|
| Card Capacity | 20,000 |
| Log Capacity | 200,000 |
Interface | |
| Comm | TCP/IP, USB Host, Mini USB, Optional RS232 |
| Relay | Relay Output |
| I/O | Door Sensor, Switch, Wiegand26 In&Out |
| Feature | |
| Identification Mode | Card, ID+PW, PW+Card |
| Verification Speed | <0.5 Sec |
| Self-defined Status | 8 Customizable time and attendance status |
| Short Message | 50 |
| Scheduled Bell | 30 |
| Groups & Time Schedules | 16 Groups, 32 Time Zones |
| Workcode | 6 digit |
| Software | Anviz Crosschex Standard |
| Hardware | |
| CPU | 32-Bit High Speed CPU |
| Sensor | AFOS |
| Scan Area | 22m*18mm |
| Resolution | 500 DPI |
| RFID Card | Standard 125KHZ EM RFID, Optional 13.56MHZ Mifare |
| Dimensions(WxHxD) | 125x189x35mm (4.9x7.4x1.4″) |
| Temperature | -30℃~60℃ |
| Power | DC 12V |
Brand: Access Control / ANVIZ
Title: Anviz OC500 RFID Time Attendance and Access Control
Model: OC-500
Code: 167738903
Category: Security / Access Control / ANVIZ
Product Type: Access Control
Price: 12000
Warranty: 0
Availability: Available/In Stock
Description:
Time Attendance and Access Control Management System
Employee Management: Unify Employee management.
Device Management: Quick Add, Easy Setting.
Shift Management: Manual and intelligent shift schedule.
Export Management: Flexible and Practical Report output.
Anviz OC500 FeatureTexas Instruments 32-bit high-speed CPU of low power consumption,Clear voice prompts along with all operations,USB Plug & Play connection. No driver needed,TCP/IP connectivity,USB pen drive data download,Real-time data transfer and WEB online tracking,Optional13.56MHZ Mifare or HID card reader,Various employee authentication methods,Easy combination of password and card,16 different customizable time and attendance status,6-digit work code to calculate different job cost,Public and private short message display,Support 12V power supply for electric/magnetic locks,Relay output for easy integration with bell ring or electric/magnetic lock system,Advanced access control with 16 groups and 32 time zones availableStandard Wiegand output for seamless integration with access controller,Wiegand input to connect external fingerprint, card or keypad reader,Support multiple display and software language.Anviz OC500 Parameter
Capacity
Card Capacity
20,000
Log Capacity
200,000
Interface
Comm
TCP/IP, USB Host, Mini USB, Optional RS232
Relay
Relay Output
I/O
Door Sensor, Switch, Wiegand26 In&Out
Feature
Identification Mode
Card, ID+PW, PW+Card
Verification Speed
<0.5 Sec
Self-defined Status
8 Customizable time and attendance status
Short Message
50
Scheduled Bell
30
Groups & Time Schedules
16 Groups, 32 Time Zones
Workcode
6 digit
Software
Anviz Crosschex Standard
Hardware
CPU
32-Bit High Speed CPU
Sensor
AFOS
Scan Area
22m*18mm
Resolution
500 DPI
RFID Card
Standard 125KHZ EM RFID, Optional
13.56MHZ Mifare
Dimensions(WxHxD)
125x189x35mm (4.9x7.4x1.4″)
Temperature
-30℃~60℃
Power
DC 12V
