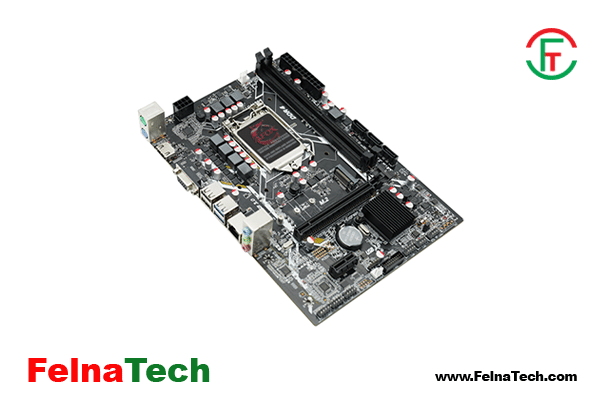

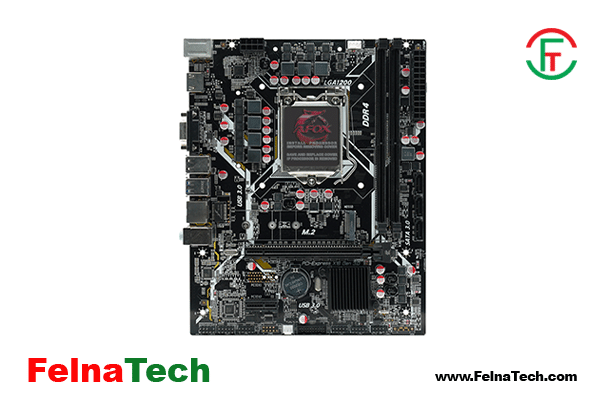

Afox Intel IH510D4-MA6 MICRO ATX Motherboard

Brand: Afox

Title: Afox Intel IH510D4-MA6 MICRO ATX Motherboard

Model: AFOX-IH510D4-MA6

Code: 12229803

Category: Component

Sub Category: Motherboard AMD

Sub-Sub Category: Afox

Price: 8500

Offer Status: 0

Description:

Basic Info

Brand

AFOX

Series

Intel

Model

IH510D4-MA6

Design

Product Type

Desktop Motherboard

Form Factor

Micro ATX

Body Color

Black

CPU

Chipset

Intel H510

Sockets Supported

LGA1200

CPU Supported

Intel 10th /11th Gen

Memory

Memory Type

DDR4

Memory Speed (MHz)

Max 2666/ 2400/ 2133MHz

Memory Slot

2

Memory Max

64GB

Storage

HDD Interface

3 x SATA

HDD Slot

3

SSD Interface

M.2

SSD Slot

1

Graphics

Graphics Chipset

Integrated With Processor

Expansion Slots

1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot

Audio

Chip

Onboard Realtek 662/887/897

Network

Ethernet LAN

Realtek RTL8111 1000Mbps Ethernet on board

Ports & Interfaces

USB 2 Port

2 x USB 2.0 Ports,(Additional 4 x USB 2.0)

USB 3 Port

2 x USB 3.0 Ports (Additional 2 x USB 3.0)

HDMI Port

1

VGA Port

1

RJ-45 ports

1

Audio Jack

3 x HD Audio Jacks (Line in / Front Speaker / Microphone)



Bios Information

BIOS Model

UEFI BIOS

Power

Power Consumption

60W

Additional Info

Others

1 x SATA II cable, 1 x I/O Rear Panel, 1 x User Manual, 1 x Driver CD

Made in

China

Physical Description

Dimensions

18*22.5cm

Warranty

Warranty

3 Years

Warranty Details

3 Years Seller Warranty

Warranty Policy

No Warranty for Physical & Burn Damage
