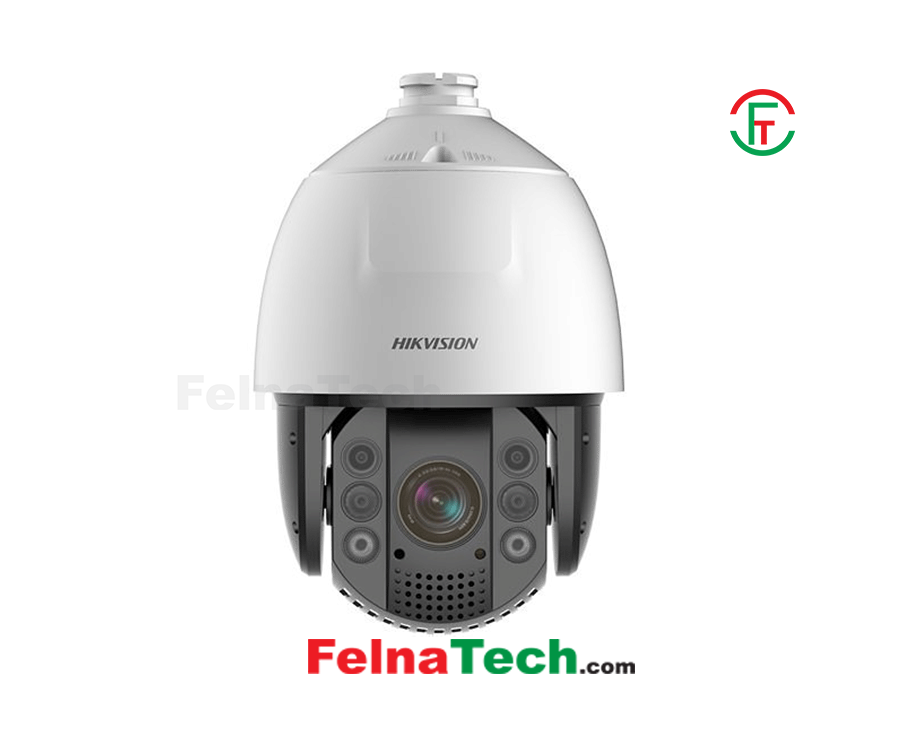

DS-2DE7A432IW-AEB 7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome

Brand: Hikvision

Title: Hikvision DS-2DE7A432IW-AEB 7-inch 4 MP 32X Powered Security Camera

Model: DS-2DE7A432IW-AEB

Code: 16152101

Category: Security

Price: 84000

Sub-Sub Category: Hikvision

Offer Status: 0

Description:

CameraMax. Resolution : 2560 × 1440Image Sensor : 1/1.8” progressive scan CMOSMin. Illumination : Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IRShutter Speed : 1/1 s to 1/30000 sSlow Shutter : YesDay & Night : IR cut filterZoom : 32x optical, 16x digitalLensFocal Length : 5.9 mm to 188.8 mmZoom Speed : Approx. 4.8 sFOV : Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5°  wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)Aperture : Max. F1.5Focus : Auto, semi-auto, manual, rapid focusIlluminatorSupplement Light Type : IRSupplement Light Range : IR Distance: up to 200 mPTZMovement Range (Pan) : 360°Movement Range (Tilt) : -15° to 90° (auto flip)Pan Speed : Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/sTilt Speed : Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/sProportional Pan : YesPresets : 300Patrol Scan : 8 patrols, up to 32 presets for each patrolPattern Scan : 4 pattern scansPower-off Memory : YesPark Action : Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan3D Positioning : YesPTZ Status Display : YesPreset Freezing : YesScheduled Task : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux outputVideoMain Stream :  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)Sub-Stream : 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)Third Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)Video Compression :  Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264 MJPEG Third stream: H.265/H.264/MJPEGVideo Bit Rate : 32 kbps to 16384 kbpsH.264 Type : Baseline Profile/Main Profile/High ProfileH.265 Type : Main ProfileScalable Video Coding (SVC) : H.264 and H.265 encodingRegion of Interest (ROI) : 8 fixed regions for each streamAudioAudio Compression : G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCMAudio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/48 kHzEnvironment Noise Filtering : YesNetworkNetwork Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, WebsocketsAPI : Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, SUPSimultaneous Live View : Up to 20 channelsUser/Host : Up to 32 users, 3 user levels: administrator, operator, and userSecurity : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)Client : iVMS-4200, HikCentral Pro, Hik-ConnectWeb Browser : IE11, Chrome 57+, Firefox 52+, Safari 11+ImageDay/Night Switch : Day, Night, Auto, ScheduleImage Enhancement : BLC, HLC, 3D DNRWide Dynamic Range (WDR) : 120 dBDefog : Digital defogImage Stabilization : EISRegional Exposure : YesRegional Focus : YesImage Settings : Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browserPrivacy Mask : 24 programmable polygon privacy masks, mask color or mosaic configurableSNR : > 52 dBInterfaceEthernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet portOn-board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GBAlarm : 2 inputs, 1 outputAudio : 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 ΩReset : YesBuilt-in Speaker : 1 built-in speaker with effective distance reaching max. 30 metersEventBasic Event : Motion detection, video tampering alarm, exception, alarm input and outputSmart Event :  Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detectionSmart Tracking : Manual tracking, auto-trackingAlarm Linkage :  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)Deep Learning FunctionFace Capture :  Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the facePerimeter Protection :  Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)GeneralPower : 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoEOperating Condition : -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)Demist : YesMaterial : ADC12Dimension : Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")Weight : Approx. 5 kg (11.03 lb.)

ApprovalProtection : IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protectionEMC :  FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)Safety : UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)Environment :  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)Available ModelDS-2DE7A432IW-AEB(T5)Typical ApplicationHikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment. This model has NO SPECIFIC PROTECTION.Level & DescriptionTop-level protection : Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more.Moderate protection : Hikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.No specific protection : Hikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed.
