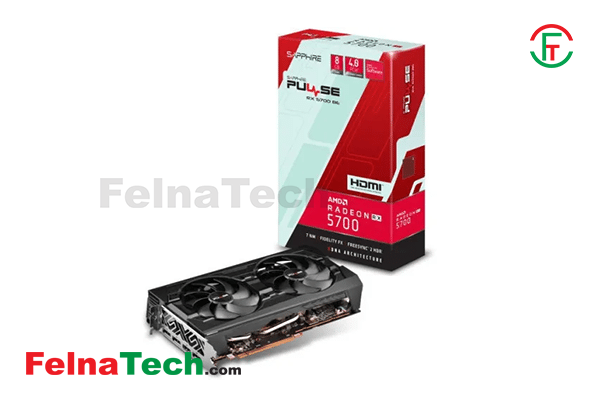

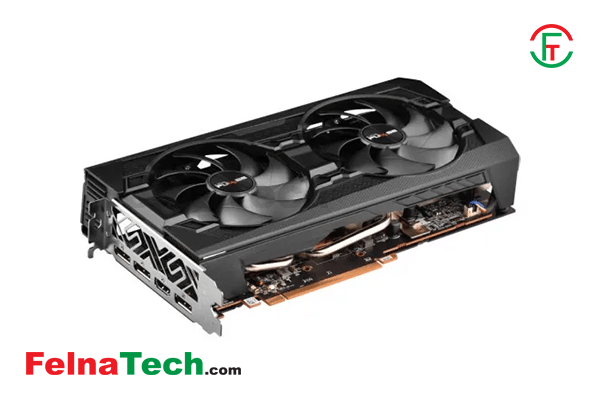

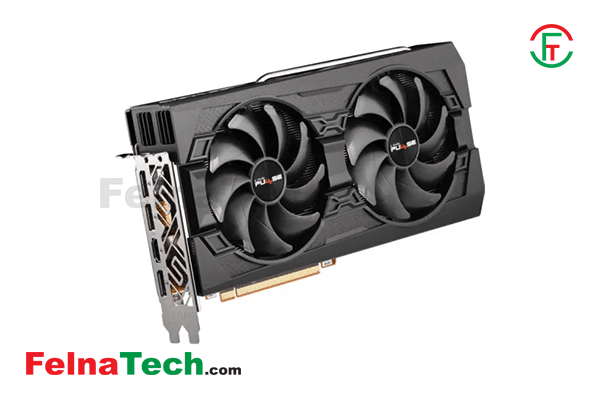

Sapphire Pulse Radeon RX 5700 8GB GDDR6 Graphics

Brand: Sapphire

Title: Sapphire Pulse Radeon RX 5700 8GB GDDR6 Graphics

Model: SAPPHIRE-PULSE-RADEON-RX-5700

Code: 127618526

Category: Component

Sub Category: Graphics Card

Sub-Sub Category: Sapphire

Price: 38000

Offer Status: 0

Description:

Video Memory Specifications

Type

GDDR6

Size

8GB

Resolution

HDMI: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz
Game Index: Extreme 1440P

Core Clock

Boost Clock: Up to 1750 MHz
Game Clock: Up to 1700 MHz
Base Clock: 1540 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary

Memory Clock

14 Gbps Effective

BUS Type

256 bit

Memory Interface

PCI Express 4.0

Stream Processors

2304

Others

Sapphire Features:
Power Design
Free Flow
TriXX Supported
TriXX Boost
Intelligent Fan Control IV
Precision Fan Control
Robust VRM Cooling
Robust Memory Cooling
Dual-X Cooling Technology
Tough Metal Backplate
PCB Layers
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Dual BIOS
AMD Features:
RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon™ Software
Radeon™ Boost
Radeon™ Image Sharpening
Radeon™ Anti-Lag
AMD FidelityFx
Async Compute
Radeon™ Rays Audio + True Audio Next
Radeon™ FreeSync™ 2 HDR
Radeon™ VR Ready Premium

Interface

Display Port

3x DisplayPort 1.4

HDMI

1x HDMI

Power Specifications

Connectors

1 x 8-pin Power Connector
1 x 6-pin Power Connector

Recommended PSU

Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply)

Consumption

187W

Display Option

Multi Display

Yes ( Maximum 4 Outputs )

Application Programming Interfaces

DirectX

12

OpenGL

4.6

Physical Specifications

Dimensions

254 x 135 x 46.5 mm

Others

Cooling:
Dual-X Cooling
Dual Fan
Two-Ball Bearing
Form Factor:
2.3 slot, ATX

Warranty

Manufacturing Warranty

2 Years Warranty
