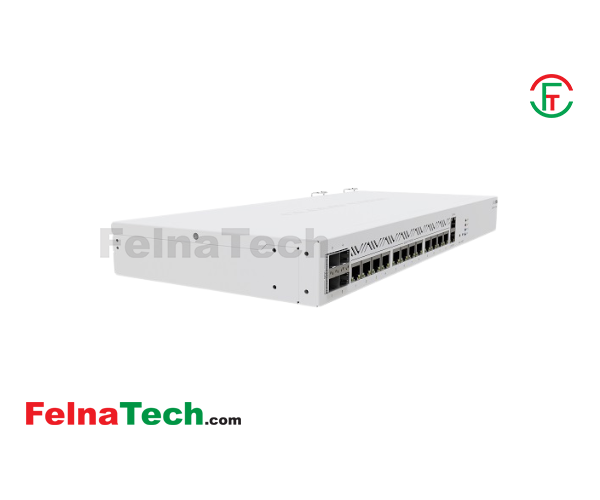

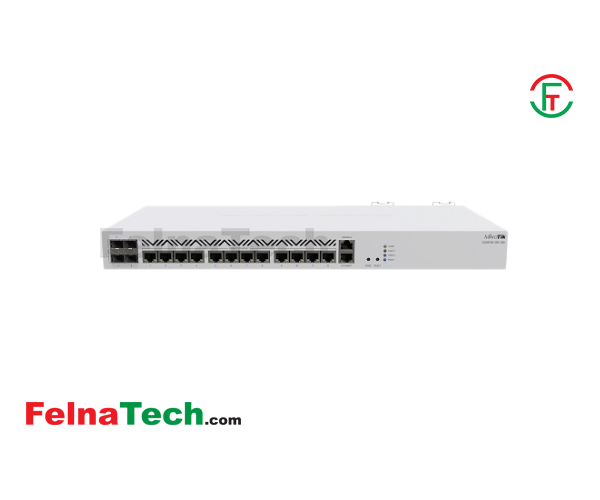

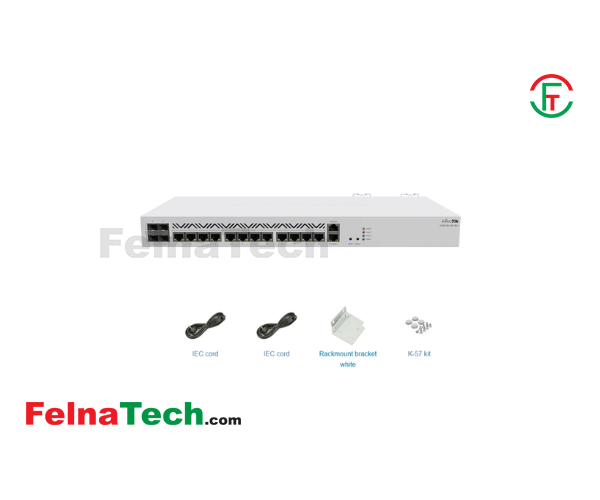

Mikrotik CCR2116-12G-4S+ 16 Core ARM CPU 10G SFP+ Router

Brand: / MicroTik

Title: Mikrotik CCR2116-12G-4S+ 16 Core ARM CPU 10G SFP+ Router

Model: CCR2116-12G-4S+

Code: 21626606

Category: Networking / Router / Mikrotik

Product Type: Router

Price: 117500

Warranty: 1

Availability: Available/In Stock

Description:

Mikrotik CCR2116-12G-4S+ 16 Core ARM CPU 10G SFP+ Router


Technical Specifications:

Model: CCR2116-12G-4S+
Architecture: ARM 64-bit
CPU: Amazon Annapurna Labs Alpine AL73400 (16 Cores @ 2.0 GHz)
Switch Chip: Marvell Aldrin family (98DX3255)
RAM: 16 GB DDR4
Storage Size: 128 MB NAND
SFP+ Ports: 4 × 10G SFP+ Ports (Full-Duplex)
Ethernet Ports: 13 × 10/100/1000 Mbps Gigabit Ethernet Ports (12× switched, 1× direct to CPU for management)
M.2 Slot: 1 × PCIe M.2 Slot (Supports high-speed SSDs for additional storage/expansion)
Operating System: RouterOS v7 Only (License Level 6)

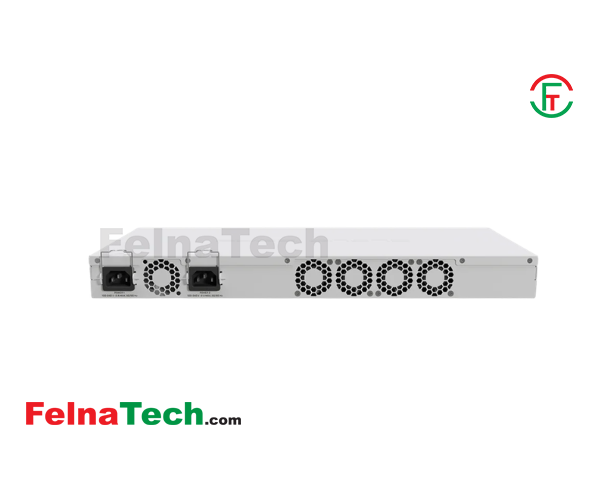

Power Supply: Dual-Redundant AC Inputs (100–240V) for maximum uptime
Cooling System: 4 × High-efficiency Temperature-Controlled Fans
Dimensions / Form Factor: 1U Rackmount | Standard Data Center Size

Warranty: 1-Year Limited Manufacturer Warranty

Key Features & Benefits:

16-Core ARM Next-Gen Power: Driven by a massive 2.0 GHz 16-core ARM processor, eliminating CPU bottlenecks in high-speed 10G environments. It delivers double the overall performance of legacy 36-core CCRs.

6x Faster BGP Routing: Specifically optimized for dynamic routing, offering up to 6 times faster BGP performance—perfect for managing heavy internet traffic and complex routing tables.

Layer 3 Hardware Offloading: Features native L3 Hardware Offloading to drastically improve packet forwarding speeds while keeping CPU usage low during heavy workloads.

Non-Blocking 10G Connectivity: Equipped with 4 dedicated 10G SFP+ ports running through a powerful Marvell switch chip via independent full-duplex lines, ensuring switch-like throughput without data choke points.

Smart Port Grouping: The 12 Gigabit LAN ports are divided into distinct groups, with each group possessing its own full-duplex connection to the switch chip for optimized internal data routing.

Dual-Redundant Power Supply: Built with two independent hot-swappable/redundant AC power inputs, eliminating single points of power failure to keep mission-critical operations online 24/7.

RouterOS v7 Level 6 License: Comes pre-activated with the highest level license of RouterOS v7, unlocking unrestricted access to advanced configuration options, complex queues, CGNAT, and extensive firewall rules.

Hardware-Accelerated IPsec: Safeguards data paths with built-in hardware IPsec acceleration, allowing high-performance VPN tunnels without degrading overall routing speeds.

Product Overview:

The MikroTik CCR2116-12G-4S+ is a next-generation, high-capacity Cloud Core Router designed to redefine single-core performance limits in ISP networks, enterprise data centers, and mid-to-large scale business environments across
Bangladesh. Powered by a heavyweight 16-core Amazon Annapurna Labs Alpine processor running at 2 GHz, this carrier-grade router easily manages massive BGP routing sessions, complex firewall rule trees, and intricate Quality of
Service (QoS) configurations without breaking a sweat.

Engineered with future-proofing in mind, the CCR2116-12G-4S+ pairs its immense computing muscle with serious connectivity: 4 dedicated 10G SFP+ ports for high-speed fiber backhauls and 13 Gigabit Ethernet ports.
To guarantee maximum network availability, the unit features integrated dual-redundant AC power supplies, ensuring continuous operation even if one power feed fails. Running exclusively on RouterOS v7 with a Level 6 license,
it is the ultimate, rock-solid central gateway solution for local Internet Service Providers (ISPs) and corporate networks looking to upgrade to seamless 10G infrastructure.
