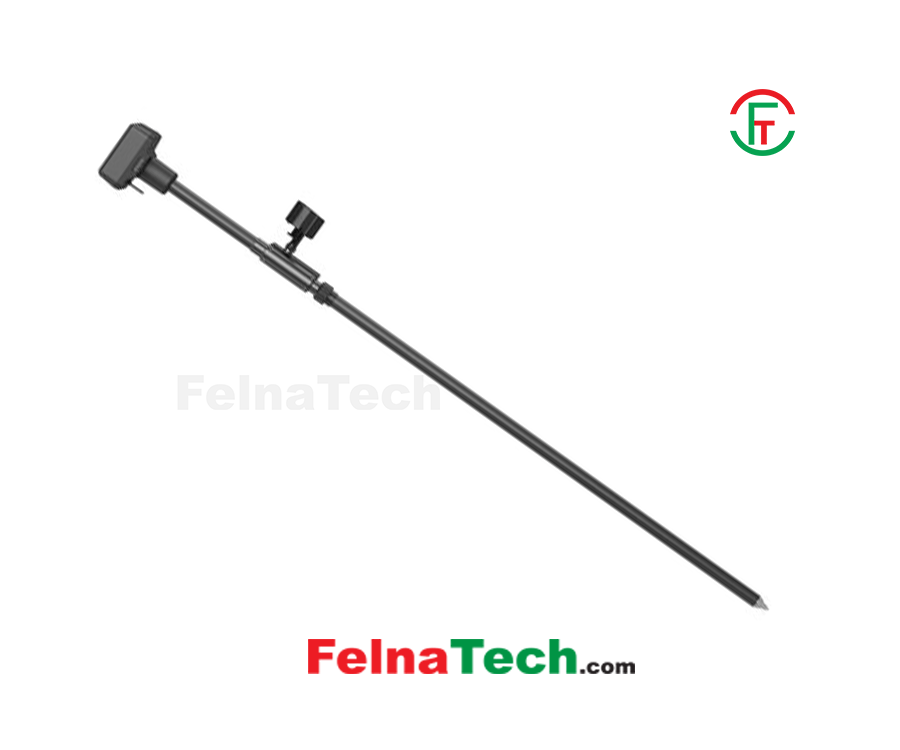

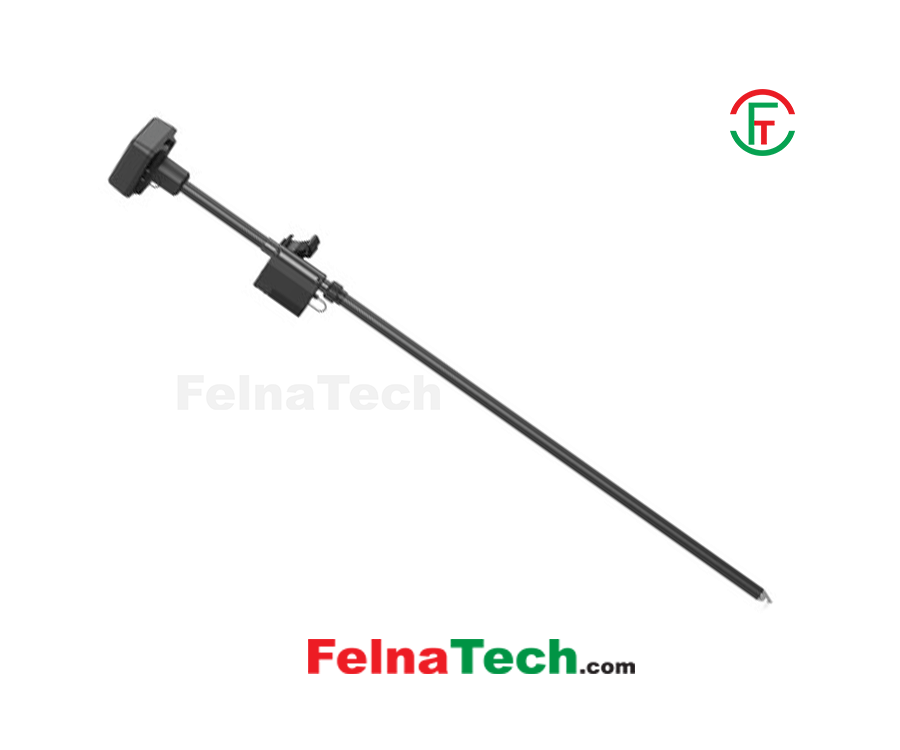

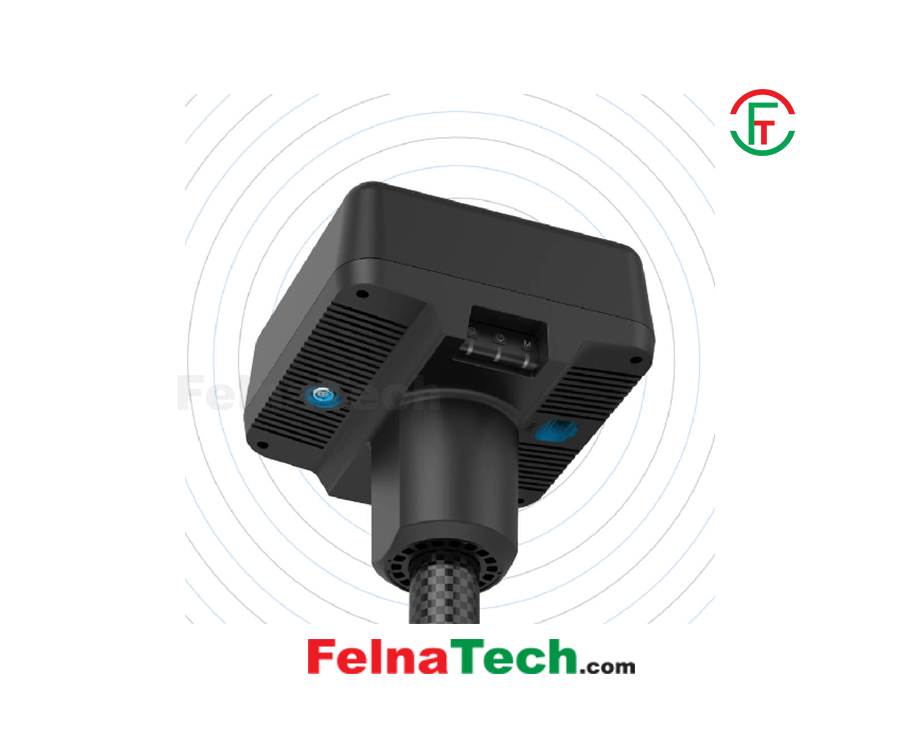

DJI D-RTK 2 High Precision GNSS Mobile Station

Brand: Drone / FelnaTech

Title: DJI D-RTK 2 High Precision GNSS Mobile Station

Model: D-RTK-2

Code: 1812134104

Category: Gadget / Drone / Drone Accessories

Product Type: Drone Accessories

Price: 310000

Warranty: 0

Availability: Out of Stock

Description:

Remote Controller

Operating Frequency

2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (China, United States, Australia)

Max Transmission Distance

Communication Distance:
Operating Mode 1/3
SRRC/NCC/FCC/MIC/KCC/CE: 2 km
(Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level
Operating Mode 4
Between the aircraft and mobile station:
NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km
Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)
Operating Mode 5
NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km
(Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)
Memory Capacity 16 GB

Operating Temperature Range

4° to 131° F (-20° to 55° C)

Battery

Battery: Type： Lithium-ion battery
Capacity: 4920 mAh
Energy: 37.3 WH
Run Time: WB37 battery：＞2 h
MG-12000P battery：＞50 h

Transmitter Power (EIRP)

OcuSync
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm

Others

GNSS Receiver
GNSS Frequency;
Simultaneously receive：
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning Accuracy;
Single Point
Horizontal：1.5 m(RMS)
Vertical：3.0 m(RMS)
RTK
Horizontal：1 cm+ 1 ppm(RMS)
Vertical：2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Cold Start: ＜45 s
Hot Start: ＜10 s
Recapture Time: ＜1 s
Initialization Reliability: ＞99.9%
Differential Data Format: RTCM 2.X/3.X
IMU
Features:
Built-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level
Dimensions(D-RTK 2 body with extension rod): 168 mm×168 mm×1708 mm
IP Rating: IP65
Data Link: OcuSync, Wi-Fi, LAN, 4G
Power Consumption: 12 W
Power Supply: 16.5 to 58.8VDC


Warranty

Warranty

No Warranty
