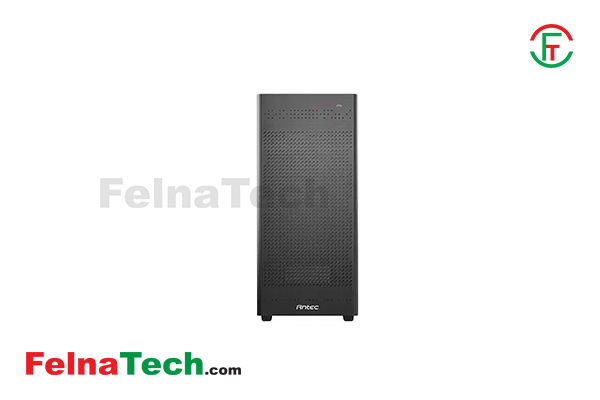

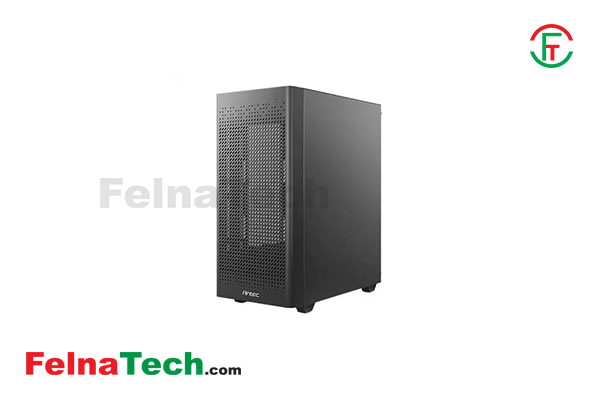

Antec NX500M Mid-Tower M-ATX Gaming Case
Model: NX500M
Brand: Antec
Code: 127817537
| Case Type | |
|---|---|
| Type | Mini Tower |
| Tempered Glass Panel | Yes |
| Motherboard Support | Micro-ATX, ITX |
| External Features | |
| Color(s) | Black |
| Material | Steel + Plastic |
| Weight | Net Weight: 3.7 Kgs Gross Weight: 4.45 Kgs |
| Dimensions | 384 x 200 x 451mm (DWH) |
| Front Ports | Power, Reset, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO |
| Expansion Slots | 5 |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 (Length≤397mm)mm Top: 120 / 240mm Rear: 120mm |
| Fan Support | Front: 3 x 120mm / 2 x 140mm Top: 2 x 120mm / 2 x 140mm Rear: 1 x 120mm |
| Pre- Installed Fans | 1 x 120mm regular fan in rear |
| Drive Bays | 3.5" /2.5": 2 / 2 2.5": 2 |
| Clearance Space | |
| Maximum CPU Cooler Height | ≤ 155mm |
| Maximum Graphics Card Length | ≤ 300mm(with front fan) ≤ 320mm(without front fan) |
| Maximum PSU Length | ≤ 165mm(with HDD) ≤ 325mm(without HDD) |
| Warranty | |
| Warranty | No Warranty |
Brand: Antec
Title: Antec NX500M Mid-Tower M-ATX Gaming Case
Model: NX500M
Code: 127817537
Category: Component
Sub Category: Casing
Sub-Sub Category: Antec
Price: 3300
Offer Status: 0
Description:
Case Type
Type
Mini Tower
Tempered Glass Panel
Yes
Motherboard Support
Micro-ATX, ITX
External Features
Color(s)
Black
Material
Steel + Plastic
Weight
Net Weight: 3.7 Kgs
Gross Weight: 4.45 Kgs
Dimensions
384 x 200 x 451mm (DWH)
Front Ports
Power, Reset, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
Expansion Slots
5
Radiator Support
Front: 120 / 140 / 240 / 280 / 360 (Length≤397mm)mm
Top: 120 / 240mm
Rear: 120mm
Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm
Pre- Installed Fans
1 x 120mm regular fan in rear
Drive Bays
3.5" /2.5": 2 / 2
2.5": 2
Clearance Space
Maximum CPU Cooler Height
≤ 155mm
Maximum Graphics Card Length
≤ 300mm(with front fan)
≤ 320mm(without front fan)
Maximum PSU Length
≤ 165mm(with HDD)
≤ 325mm(without HDD)
Warranty
Warranty
No Warranty
