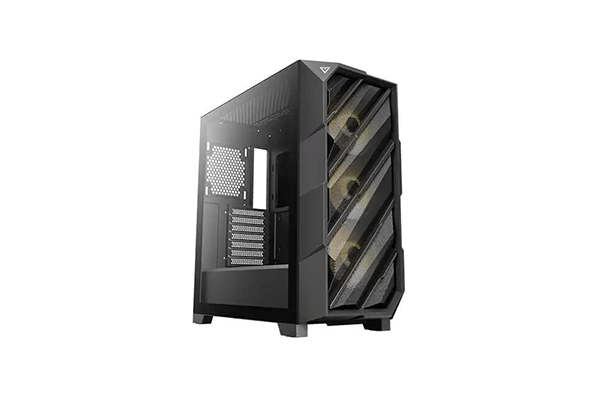

Antec DP503 Mid-Tower E-ATX Gaming Case
Model: DP503
Brand: Antec
Code: 127817529
| Case Type | |
|---|---|
| Type | Mid Tower |
| Tempered Glass Panel | Yes |
| Motherboard Support | E-ATX, ATX, Micro-ATX, ITX |
| External Features | |
| Color(s) | Black |
| Material | Steel, Plastic |
| Weight | Net Weight: 7.88kg Gross Weight: 9.11kg |
| Dimensions | 483 x 220 x 492 mm (DWH) |
| Front Ports | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
| Expansion Slots | 7 |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm |
| Fan Support | Front: 120mm x 3 / 140mm x 3 / 185mm x 2 Top: 120mm x 3 / 140mm x 2 Power Supply Shroud: 120mm x 2 Rear: 120mm x 1 |
| Pre- Installed Fans | 120mm ARGB fans in front x 3 |
| Drive Bays | 3.5" / 2.5": 2 / 2 2.5": 2 |
| Additional Feature | |
| Side Panel | 4mm Tempered Glass |
| Clearance Space | |
| Maximum CPU Cooler Height | ≤ 170mm |
| Maximum Graphics Card Length | ≤ 375mm |
| Maximum PSU Length | ≤ 205mm(with HDD) ≤ 410mm(without HDD) |
| Warranty | |
| Warranty | No Warranty |
Brand: Antec
Title: Antec DP503 Mid-Tower E-ATX Gaming Case
Model: DP503
Code: 127817529
Category: Component
Sub Category: Casing
Sub-Sub Category: Antec
Price: 8900
Offer Status: 0
Description:
Case Type
Type
Mid Tower
Tempered Glass Panel
Yes
Motherboard Support
E-ATX, ATX, Micro-ATX, ITX
External Features
Color(s)
Black
Material
Steel, Plastic
Weight
Net Weight: 7.88kg
Gross Weight: 9.11kg
Dimensions
483 x 220 x 492 mm (DWH)
Front Ports
Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1
Expansion Slots
7
Radiator Support
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120mm
Fan Support
Front: 120mm x 3 / 140mm x 3 / 185mm x 2
Top: 120mm x 3 / 140mm x 2
Power Supply Shroud: 120mm x 2
Rear: 120mm x 1
Pre- Installed Fans
120mm ARGB fans in front x 3
Drive Bays
3.5" / 2.5": 2 / 2
2.5": 2
Additional Feature
Side Panel
4mm Tempered Glass
Clearance Space
Maximum CPU Cooler Height
≤ 170mm
Maximum Graphics Card Length
≤ 375mm
Maximum PSU Length
≤ 205mm(with HDD)
≤ 410mm(without HDD)
Warranty
Warranty
No Warranty
