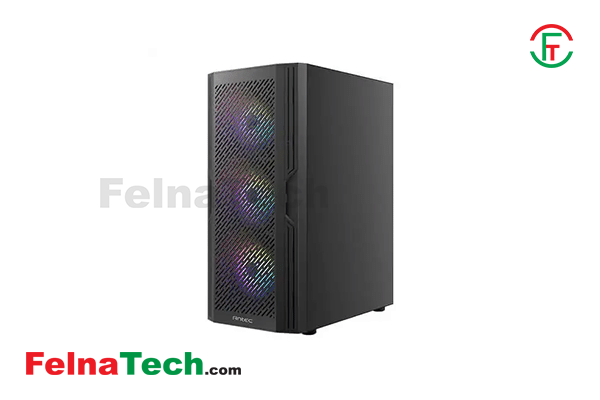

Antec AX20 Mid-Tower ATX Gaming Case
Model: ANTEC-AX20
Brand: Antec
Code: 127817506
Specification
| Case Type | ||
|---|---|---|
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | ATX, Micro-ATX, ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | Steel+Plastic | |
| Weight | Net Weight: 4 Kgs Gross Weight: 4.71 Kgs | |
| Dimensions | 358 x 207 x 451mm (DWH) | |
| Front Ports | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 120 / 140 / 240 / 280mm | |
| Fan Support | Front: 3 x 120mm / 2 x 140mm Top: 2 x 120mm Power supply: 2 x 120mm Rear: 1 x 120mm | |
| Pre- Installed Fans | 3 x 120 RGB fixed model fans in front | |
| Drive Bays | 3.5" /2.5": 2 / 1 2.5": 2 | |
| Additional Feature | ||
| Side Panel | Tempered glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 155mm | |
| Maximum Graphics Card Length | ≤ 270mm | |
| Maximum PSU Length | ≤ 170mm(with HDD) ≤ 295mm(without HDD) | |
| Warranty | ||
| Warranty | No Warranty | |
Brand: Antec
Title: Antec AX20 Mid-Tower ATX Gaming Case
Model: ANTEC-AX20
Code: 127817506
Category: Component
Sub Category: Casing
Sub-Sub Category: Antec
Price: 3800
Offer Status: 0
Description:
Specification
Case Type
Type
Mid Tower
Tempered Glass Panel
Yes
Motherboard Support
ATX, Micro-ATX, ITX
External Features
Color(s)
Black
Material
Steel+Plastic
Weight
Net Weight: 4 Kgs
Gross Weight: 4.71 Kgs
Dimensions
358 x 207 x 451mm (DWH)
Front Ports
Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO
Expansion Slots
7
Radiator Support
Front: 120 / 140 / 240 / 280mm
Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power supply: 2 x 120mm
Rear: 1 x 120mm
Pre- Installed Fans
3 x 120 RGB fixed model fans in front
Drive Bays
3.5" /2.5": 2 / 1
2.5": 2
Additional Feature
Side Panel
Tempered glass
Clearance Space
Maximum CPU Cooler Height
≤ 155mm
Maximum Graphics Card Length
≤ 270mm
Maximum PSU Length
≤ 170mm(with HDD)
≤ 295mm(without HDD)
Warranty
Warranty
No Warranty
