V-SOL V1600D4-L 4-Port EPON OLT

Brand: OLT / VSOL

Title: V-SOL V1600D4-L 4-Port EPON OLT

Model: V1600D4-L

Code: 2110929626

Category: Networking / ISP / OLT

Product Type: Networking

Price: 37000

Warranty: 1

Availability: Available/In Stock

Description:

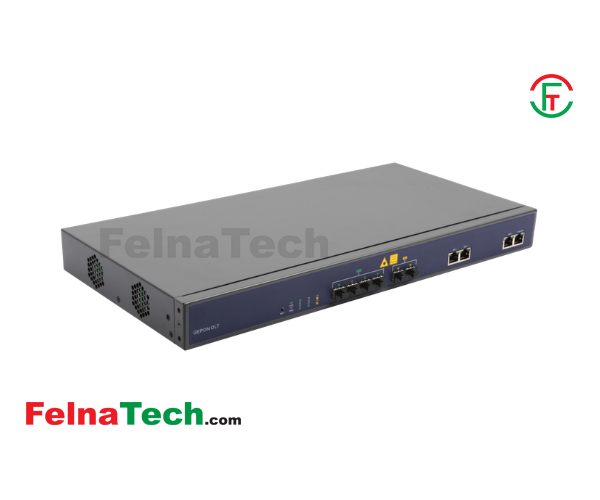

V-SOL V1600D4-L 4-Port EPON OLT

Technical Specifications:

Model: V1600D4-L
Device Type: 4-Port EPON OLT (Optical Line Terminal)

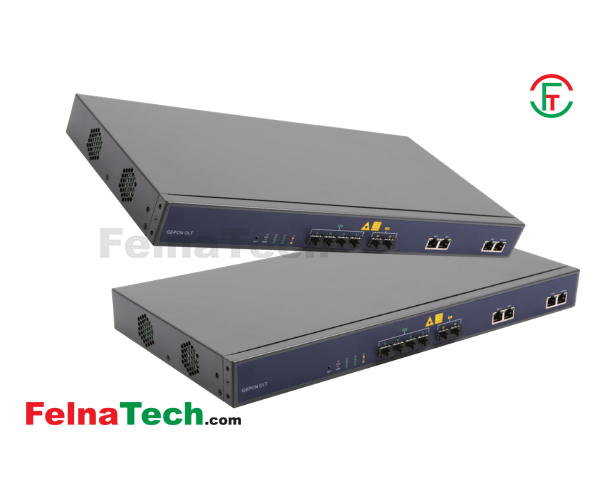

Chassis / Form Factor: 1U Height 19-inch Standard Rack Mountable
Downstream PON Interface: 4 × EPON Ports (SFP Slots, Symmetrical 1.25 Gbps speed)
Uplink Interface: 4 Ports Independent Interface (2 × 10/100/1000M RJ45 Gigabit Copper Ports + 2 × Gigabit SFP Slots)
Management Ports: 1 × 10/100BASE-T out-band port, 1 × CONSOLE port
PON Module Support: PX20, PX20+, PX20++, PX20+++
Splitting Ratio: Max 1:64 splitter ratio per port
Client (ONU) Capacity: Supports up to 256 ONUs overall (64 ONUs per PON port)
Backplane Bandwidth: 20 Gbps
Port Forwarding Rate: 11.904 Mpps
Layer 2 Features: 16K MAC address, 4096 VLANs, Port VLAN, VLAN tag/Un-tag, VLAN transparent transmission, QinQ, Link Aggregation (LACP), RSTP/STP (802.1D/1W)
LED Status Indicators: Power, PON, LOS, Link/ACT for Uplink & PON ports

Physical Specs:

Heavy-duty Metal Chassis

Weight: ~2.65 kg
Dim: 442 × 200 × 43.6 mm
Power Supply: AC: 90~264V, 47/63Hz (Support Redundant Power)
Power Consumption: 30W

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

High-Density Compact Design: Built as a 1U height 19-inch standard rack-mount box, it is ideal for compact server room environments, offering flexible and easy deployment.

Massive ONU Capacity: Supports up to 256 ONUs with a 1:64 splitting ratio, making it an extremely cost-effective solution for small to medium scale fiber network deployments.

Independent Uplink Ports: Features 2× Gigabit RJ45 copper ports and 2× independent SFP slots for flexible uplink connections to core switches or upstream routers without bottlenecks.

Efficient Layer 2 Switching: Equipped with robust L2 switching features, including a 16K MAC address table, 4096 VLANs, port isolation, and storm control to prevent network disruptions.

Smart Dynamic Bandwidth Allocation (DBA): Optimizes traffic management by dynamically distributing bandwidth among connected ONUs based on real-time demands.

Automated ONU Management: Features auto-discovery, auto-link detection, fast ONU registration, and remote firmware upgrades, saving network administrators valuable time.

Triple-Play & Multimedia Ready: Excellent Quality of Service (QoS) bandwidth control based on port, VID, TOS, and MAC address ensures lag-free transmission for IPTV, VPN, and IP Camera services.

Advanced Security & Stability: Provides Access Control Lists (ACL), specialized system breakdown prevention, and loop detection to ensure consistent, carrier-grade network up-time.

Comprehensive Flexible Management: Fully supports centralized management via WEB UI, CLI (Command Line Interface), Telnet, and EMS software for efficient local and remote administration.

Product Description:

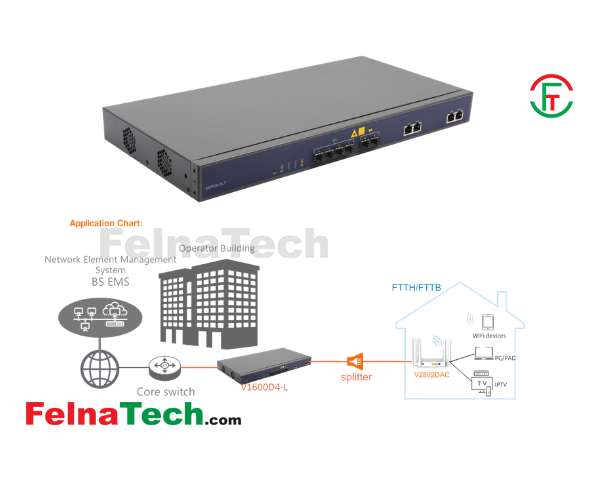

The VSOL V1600D4-L is a highly efficient, compact, and high-performance 4-Port EPON OLT designed specifically for FTTx, Triple-Play, enterprise LAN, and CCTV IP camera networks across Bangladesh.
Housed in a standard 1U 19-inch rack-mount chassis, this OLT is an exceptional, budget-friendly solution for Internet Service Providers (ISPs) looking to deploy fast and reliable fiber networks in space-constrained server rooms.
Driven by advanced Layer 2 switching capabilities, the V1600D4-L delivers symmetrical 1.25Gbps downstream bandwidth per EPON port. With a 1:64 optical splitting ratio, it comfortably connects and provisions up to 256 ONUs across its 4 PON ports.
To prevent network bottlenecks, it comes equipped with 4 flexible uplink ports, consisting of 2 Gigabit Ethernet RJ45 ports and 2 independent Gigabit SFP slots.  Engineered for modern networking, the OLT integrates essential carrier-grade features such as
Dynamic Bandwidth Allocation (DBA), automated ONU auto-discovery, and comprehensive VLAN management (including QinQ). Network administrators can effortlessly handle configurations, monitor port health, and push remote firmware updates through user-friendly Web UI,
CLI, or EMS systems. With its robust security architecture and stable performance, the VSOL V1600D4-L stands as the ultimate, scalable backbone for growing broadband infrastructures.
